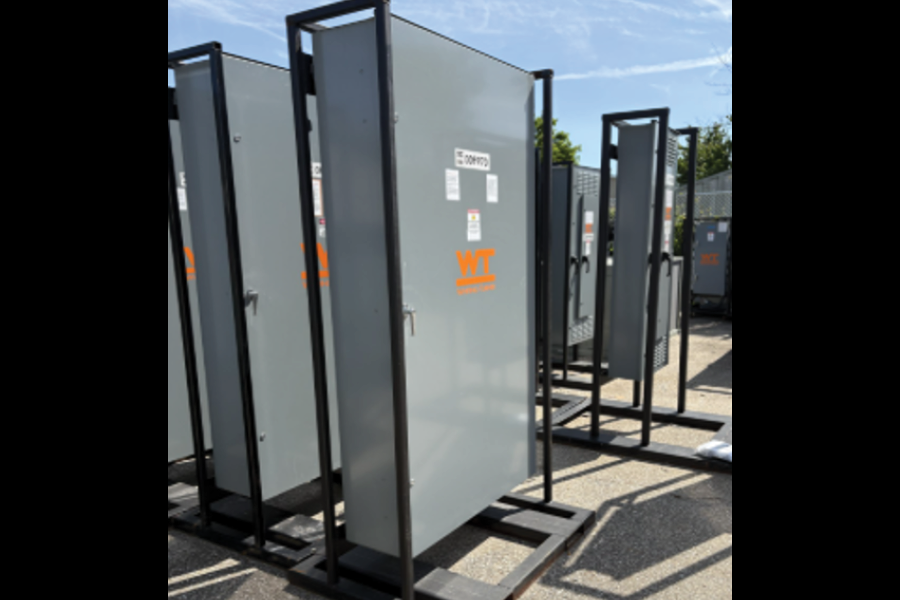

Distribution Panel, 800A, 277/480v

Electrical panel board used for the distribution of power to branch circuits. Provides safe and reliable electrical service in accordance with project specifications.

• • NEMA 3R-rated enclosure suitable for both indoor and outdoor applications.

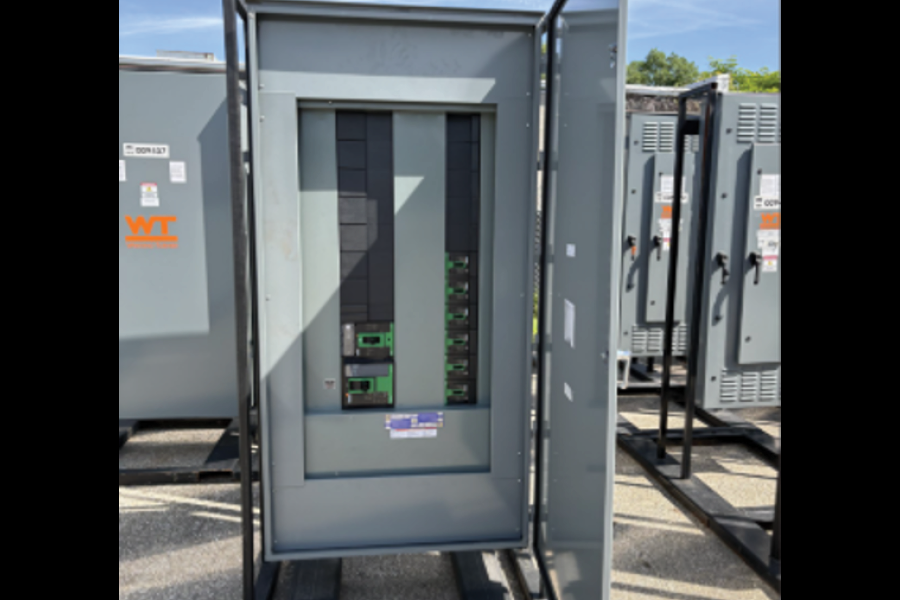

  • Square D™ I-Line Power Distribution Panelboard designed for use as service entrance equipment or as a downstream distribution panel within an electrical system.
  • Suitable for both AC and DC power distribution applications.
  • Features Schneider Electric’s exclusive I-Line breaker engagement system, allowing branch circuit breakers as small as 15A to be installed adjacent to or opposite circuit breakers rated up to 1200A.
  • Available in main lug configurations from 400A to 1200A and main breaker configurations from 100A to 1200A.
  • Provides flexible and reliable power distribution for commercial, industrial, and institutional facilities.
  • Certified to cULus and CE standards and UL Listed under File E33139.
  • Overall enclosure dimensions: 101″ H × 48″ W × 36″ D.
  • Unit weight: 1,200 lbs.
