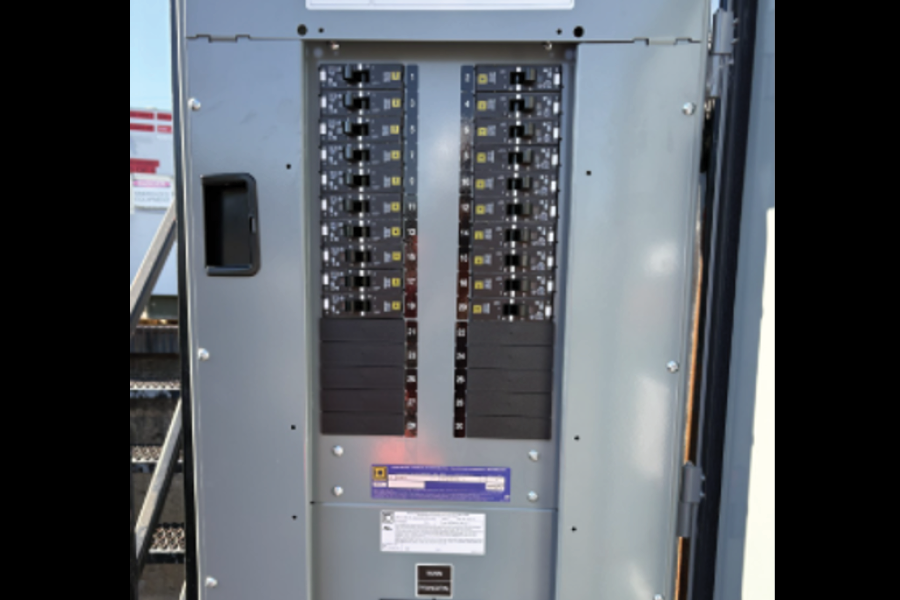

Panel Board, 100A

Electrical panel board used for the distribution of power to branch circuits. Equipped with circuit breakers and rated for 100 amps, providing safe and reliable electrical service in accordance with project specifications.

• NEMA 3R-rated enclosure suitable for both indoor and outdoor applications.
• Designed for use in commercial buildings, industrial facilities, stadiums, offices, and similar environments requiring reliable power distribution and equipment protection.
• Compatible with a wide range of circuit breakers, accessories, and factory-ready installation kits.
• Convertible from a main lug configuration to a main breaker configuration.
• Optional 200% rated neutral available for nonlinear loads.
• Available factory-installed options include split bus construction, lighting contactors, compression lugs, surge protection devices (SPDs), and phenolic nameplates.
• Main lugs are rated for 125A, 480Y/277V AC, 3-phase service.
• Interrupting current rating up to 65 kAIC.
• Configured for a 4-wire system with 30 spaces and an aluminum bus.
• Accepts EDB, EDG, and EDJ branch circuit breakers.
• Line lugs accommodate 6 AWG through 2/0 AWG copper or aluminum conductors.
• Interior dimensions: 27″ H × 10.44″ W.
• UL Listed and CSA Certified.

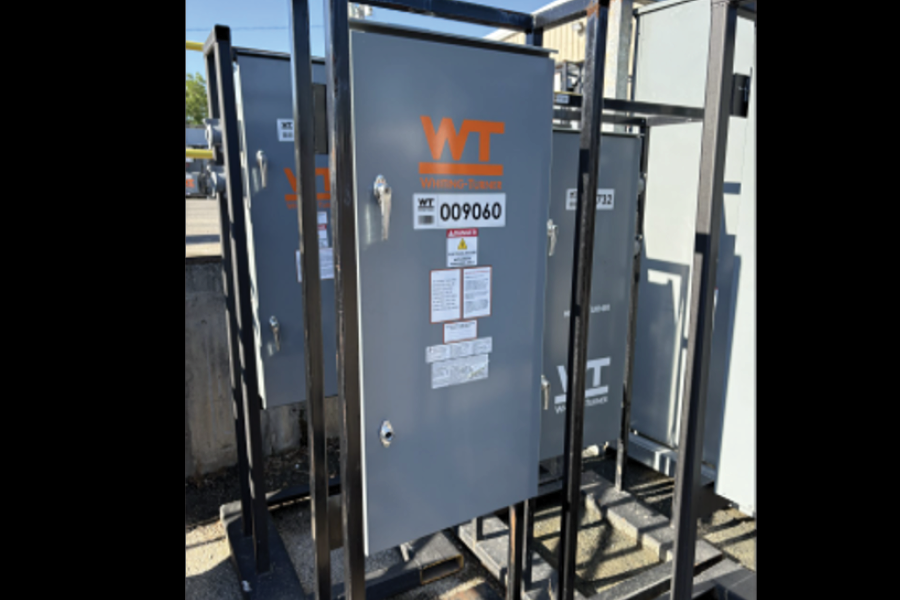

• Overall enclosure dimensions: 80″ H × 36″ W × 36″ D.
• Mounted on a steel frame with integrated fork pockets for convenient transportation and handling.
